Description

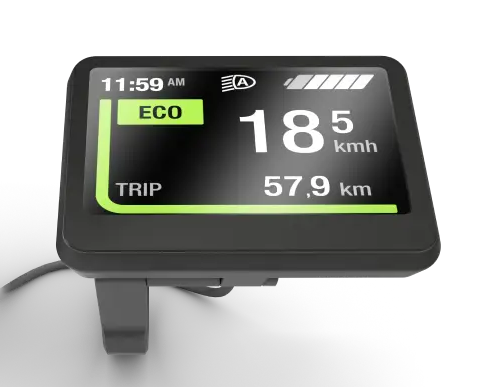

The Brose Display Central, which only has a screen, offers maximum readability in all conditions. The 3,5-inch, high-definition color screen lets cyclists see all stats at a glance. The Brose Display Central has a backlight function for optimal readability in both darkness and direct sunlight. The screen brightness can be set manually or automatically.

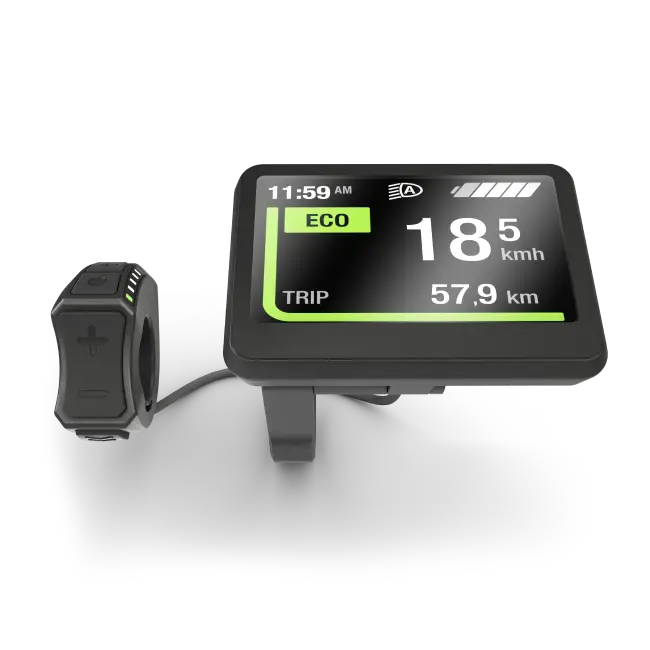

This is just the Center Display and has the Remote display E41227 and needs the Y-cable to function.
| Display |
3,5" color screen (320 × 240 px) |
| Dimensions L/H/W |
84 70 mm × mm × mm 13 |
| Handlebar diameter |
31,8 mm |
| Weight |
70 g |
| Electrical data |
12V / 3W max |
| Operating and storage temperature |
-10 ° C to +60 ° C |
| Protection class |
IPX7 (HMI) waterproof |
| CAN interface ISO 11898 |
High-speed CAN |
| Certification |
CE / ROHS / Reach / Bluetooth Countries: Canada, EU, Japan, Switzerland, USA |
| Bluetooth |
Via remote |
| Control buttons |
On / Off / Assist level (+/-) Walking assistance / Menu / Light on / off |
| Position on handlebars |
For mounting in the middle |
| Information displayed |
Battery charge level / Assistance level / Speed / Trip information / Odometer / Range / Walking aid / Light on/automatic / Error information / Service information / Time |
| Additional functions |
Bluetooth (via Remote) |
Footnotes: The central display cannot be connected if the model is not predefined with this type of display. If the bicycle model is not pre-designed with the Central display, the display will not function.
/
